Product Description

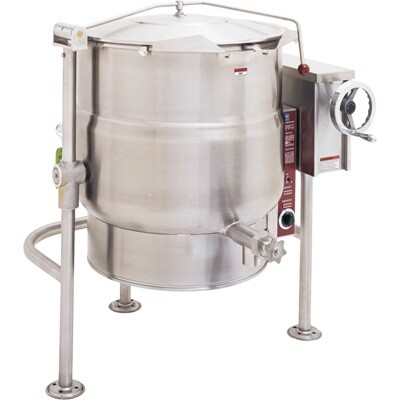

Elevate your commercial kitchen's efficiency with the Electric Steam Kettle Tilt Tri-Leg, 80 Gallon, 2/3 Jacket. This state-of-the-art kettle features a double-wall interior design that forms a steam jacket around the lower two-thirds of the unit, ensuring even heat distribution for consistent cooking results. The factory-sealed jacket, filled with distilled water, provides reliable heating for a wide range of culinary applications. The hemispherical bottom design further enhances heat circulation, delivering uniform cooking performance every time.
Built for durability and convenience, this kettle is constructed with a fully welded #4 finish stainless steel exterior and a type 316 stainless steel interior liner, ideal for high-acid cooking. The trunnion and tilt mechanism allow a full 90° forward tilt for complete emptying, while the self-locking tilt mechanism ensures stability during operation. The integrally mounted controls, including a power switch, thermostat, and safety features like a low water shut-off, make it user-friendly. With removable heating elements for easy maintenance and operation at temperatures ranging from 165°F to 285°F, this kettle is a reliable choice for any high-demand kitchen. Certified for quality and safety, it’s a valuable addition to your culinary equipment lineup.
316 Stainless Steel liner
2/3 Jacketed
Faucet bracket
Flanged feet
Hand powered crank
| Voltage Options | 380 VAC, 3 phase, 50/60 Hz; 415 VAC, 3 phase, 50/60 Hz; 480 VAC, 3 phase, 50/60 Hz; 600 VAC, 3 phase, 50/60 Hz |
| Power Options | 24 kW on 40, 60, 80 gallon; 33 kW on 60, 80, 100 gallon |
| Draw-off Valve | 2” (50 mm) draw-off valve with perforated strainer (TVT-2); 3” (76 mm) draw-off valve with perforated strainer (TVT-3) |
| Cover Options | Spring assist hinged stainless steel cover (CH-); One piece lift off stainless steel cover (C-) |
| Markings | Etched gallon markings (GM-); Etched litre markings (LM-) |
| Faucet Options | Single pantry faucet with an 18” swing spout (SF-18); Double pantry faucet with an 18” swing spout (DF-18); Single pantry faucet with 18” swing spout and 68” spray hose and bracket (SF-RSH-18); Double pantry faucet with 18” swing spout and 68” spray hose and bracket (DF-RSH-18) |
| Thermostat Options | Solid State Thermostat (SST-E); Calibrated thermostat dial, “F”; Calibrated thermostat dial, “C” |
| Heat Shield | Kettle heat shield (KHS-) |
