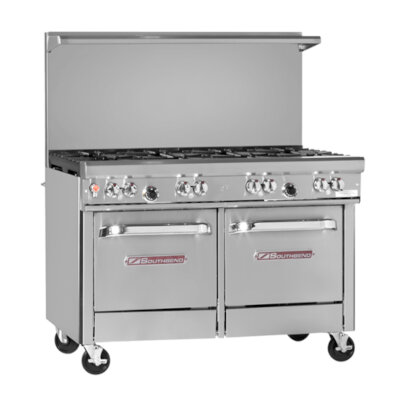

The Ultimate Restaurant Range 48” Series is a high-quality, commercial gas range designed for heavy-duty kitchen use. With a width of 48-5/8” and a cooking top height of 37”, it is equipped with a 4” stainless steel front rail and stainless steel construction for durability and ease of cleaning. The range includes a front-located manual gas shut-off for safety, along with a factory-installed regulator to ensure consistent gas pressure. The standing pilot for the open top burners and battery spark ignition for the oven bases guarantee reliable performance during high-volume cooking.
The Wavy Grates (Burner Option 2) feature a cast bowl design that enhances efficiency by allowing full use of the entire range top. These grates are available only with 27,000 BTU non-clog burners, and the unit includes two burners. For those requiring additional versatility, the 5 Burner Configuration (Burner Option 6) combines two Pyromax burners in the rear with three 33K BTU star burners in the front, offering flexibility for different cooking tasks.
Commercial gas range 48-5/8" wide with a 37" high cooking top.
4" Stainless steel front rail, stainless steel front and sides.
Front located manual gas shut-off to entire range.
Factory installed regulator.
Removable, cast iron grate tops (Rear holds up to 14" stock pot).
Standing pilot for open top burners.
Battery spark ignition for oven bases.
Cast bowl design for better efficiency.
(2) 27K BTU non-clog burners with continuous wavy grates that allow full use of the entire range top.
Combine (2) Pyromax burners in the rear with (3) star 33K burners in the front.
| Standard Oven Base | 45,000 BTU NAT oven with standing pilot, 175°F–550°F thermostat. Porcelain enamel interior: 14"H x 26"W x 26.5"D. Fits full-size pans both ways. Includes one rack with two-position side rails. |
| Stainless Steel Cabinet Base | 18" Stainless steel cabinet base. Optional no-charge door. |
| Flue Riser Options | 5" or 10" flue riser. |
| Quick Disconnect Hose | 3/4" Quick disconnect with flexible hose complies with ANSI Z 21.69 (Specify 3ft, 4ft, 5ft). |
| Casters | All swivel-front with locks. |
| Hot Top Plate | Plate replaces 2 open burners. |
| Battery Spark Ignition | For open tops, charbroilers, griddles, and hot tops. |
