Product Description

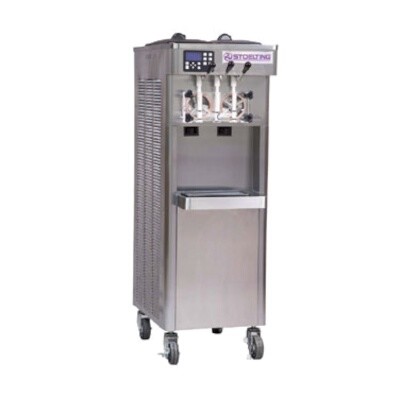

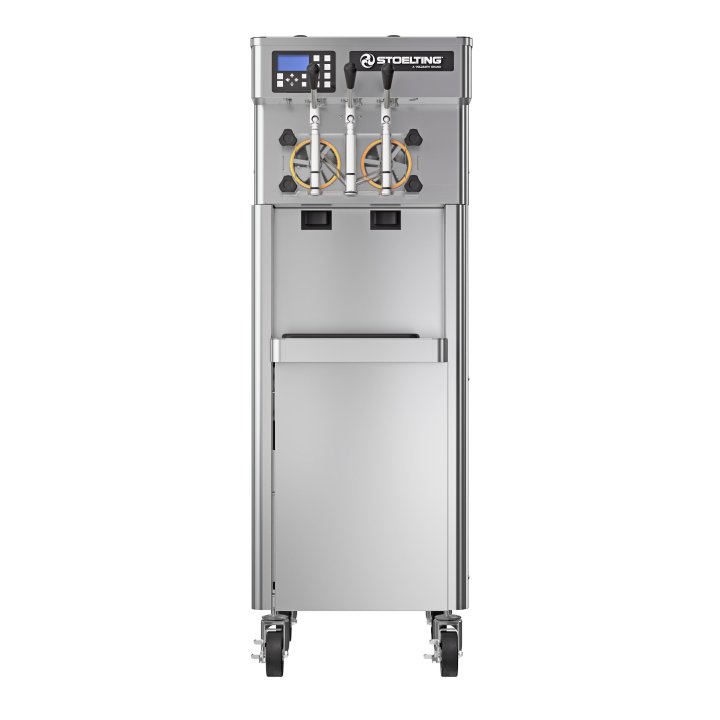

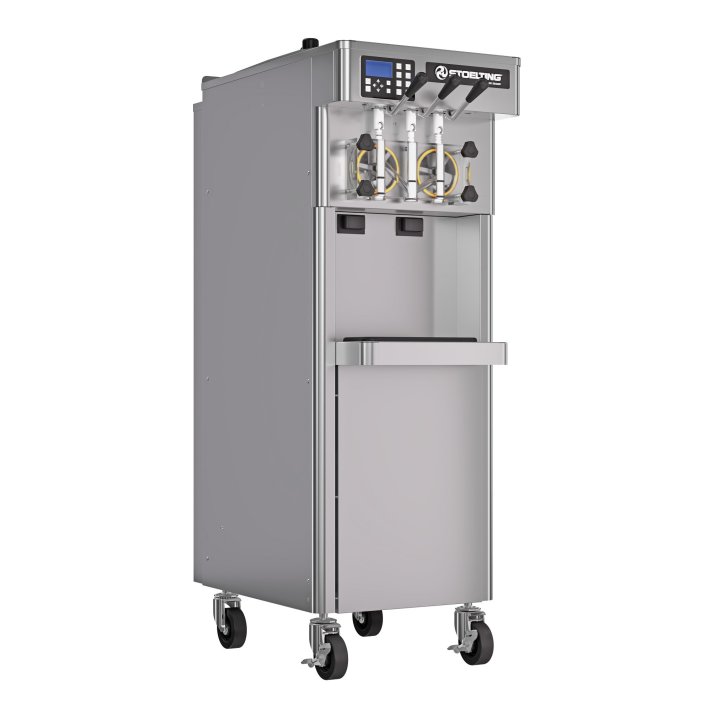

Twin-twist, compact floor standing, gravity-fed, soft serve/yogurt freezer. Delivering high-quality consistency from first cone to last, this hardworking floor standing unit easily handles peak demands and is built to last. Cleanup and maintenance are a breeze; the Intellitec2ae control provides the ultimate in worry-free operation, and the Energy Conservation Mode (ECM) protects against over agitation.
| UPC | 671080518947 |
| Width (IN) | 19.25 |
| Depth (IN) | 28 |
| Height (IN) | 58.25 |
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Phase | 1 |
| Plug | NEMA 6-20P |
| Plug Connection | Yes |
| Running Amps | 12 |
| Voltage | 208-240 |
| Output Capacity per Hour: Running Both Sides (GAL) | 11.5 |
| Output Capacity per Hour: Running One Side (GAL) | 8.5 |
| Weight (LB) | 400 |
| Refrigerant | R448A |
| Product Function | Soft Serve & Frozen Yogurt Floor Standing Machines |
| Cooling | Water |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Freezing Cylinder Refrigerant | R448A |
| Plumbing Fittings | Units require 1/2" N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F |
| Hopper Capacity (GAL) | 3 |
| Total Hopper Capacity (GAL) | 6 |
| Freezing Cylinder Capacity (GAL) | 0.85 |
