Product Description

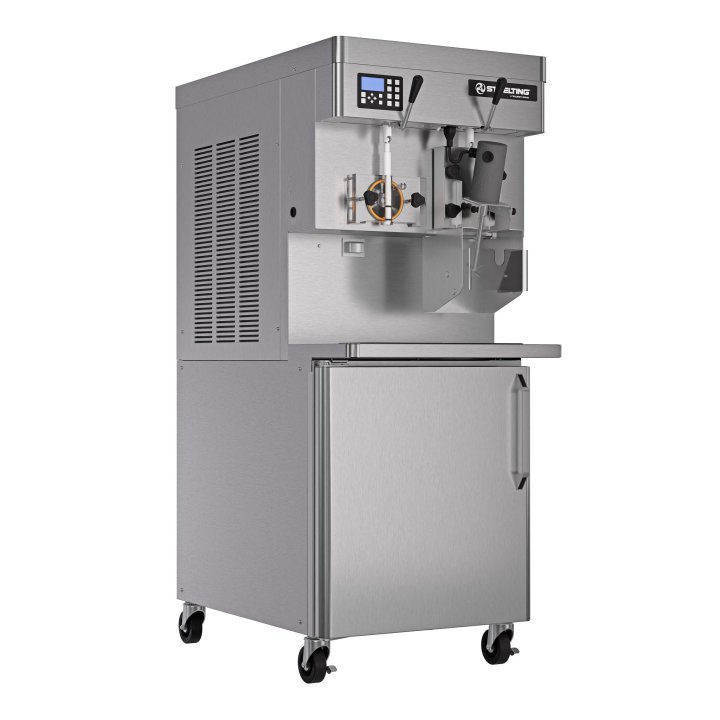

Deliver consistent, smooth soft serve from the left and thick, creamy shakes from the right with the ease and versatility of a high-capacity, combination soft serve and shake machine. This 208- to 240-volt, 3-phase, air-cooled unit provides greater reliability and whisper-quiet operation, thanks to the Stoelting4ae high-efficiency evaporator system and Scroll42122 compressor. Meanwhile, the refrigerated mix storage cabinet features a slide-out shelf to hold two 8-gallon-mix containers. Plus, the mix pump injects a precise amount of air into the mix, maintaining consistent overrun and maximizing profitability with clean-in-place simplicity. Our proprietary auger design gently folds mix, preventing product breakdown to produce a smoother, creamier product.
| UPC | 671080201245 |
| Overall Dimensions (IN) | 26-3/4 x 40 x 67-1/2 |
| Frequency (Hz) | 60 |
| Hardwired Connection | Yes |
| Hz | 60 |
| Maximum Overcurrent Protection Device Amps (Per Barrel): Left | 30 |
| Maximum Overcurrent Protection Device Amps (Per Barrel): Right | 30 |
| Minimum Circuit Ampacity (Per Barrel): Left | 21.8 |
| Minimum Circuit Ampacity (Per Barrel): Right | 21.7 |
| Phase | 3 |
| Plug Connection | No |
| Voltage | 208-240 |
| Cabinet Capacity (GAL) | 16 |
| Weight (LB) | 760 |
| Cooling | Air |
| Drive Motor: Soft Serve (hp) | 2 |
| Drive Motor: Shake (hp) | 3/4 |
| Number of Freezing Cylinders | 2 |
| Number of Freezing Cylinder Compressors | 2 |
| Freezing Cylinder Refrigerant | R448a |
| Freezing Cylinder: Soft Serve Compressor (Btu/hr) | 19000 |
| Freezing Cylinder: Shake Compressor (Btu/hr) | 15000 |
| Cabinet Compressor (Btu/hr) | 1300 |
| Cabinet Refrigerant | R-134a |
| Air Flow | Units require 6" (15.2 cm) air space on all sides. |
| Freezing Cylinder: Shake Capacity (GAL) | 2.1 |
| Freezing Cylinder: Soft Serve Capacity (GAL) | 1.33 |
| Case Width | 46 |
| Case Height | 77 |
| Case Length | 33 |
